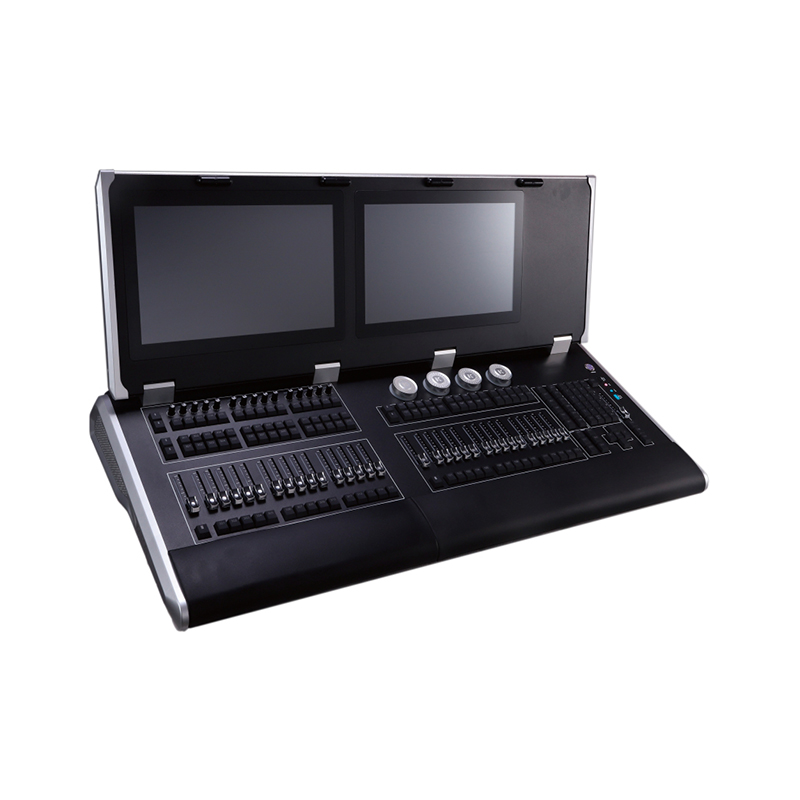

Dual screen MA control panel
Professional Linux operating system
➤: Built in 2 electric lifting 15.4-inch industrial full view touch screens, 1 9-inch industrial full view touch screen
➤: Powerful i5 CPU, 4G memory, built-in solid-state drive,
➤: 6 DMX output ports, 1 composite DMX input port (can be set as output), can support up to 65536 channels when connected to NPU
➤: 15 electric playback push rods with induction function (60mm), 50 program execution buttons
➤: 1 main control push rod, 1 dimming wheel
➤: 1 controllable XY axis high-precision original imported trackball
➤: 2 A/B electric push rods (100mm)
➤: 6 imported industrial grade wear-resistant encoders (with push function)
➤: Supports MA NET, ARTNET, ETC NET2, PATHPORT, SCAN, SHOWNET, and KINET1 signals
➤: 5 USB ports, 1 backup USB port
➤: 2 work light interfaces
➤: MIDI input/output interface, audio input/output, microphone input interface
➤: Built in 1 drawer, built-in push-pull professional yellow backlit mechanical keyboard (adjustable backlight brightness)
➤: Wide voltage industrial power supply 100V-240V 50/60Hz
➤: Built in high-power UPS uninterruptible power supply
